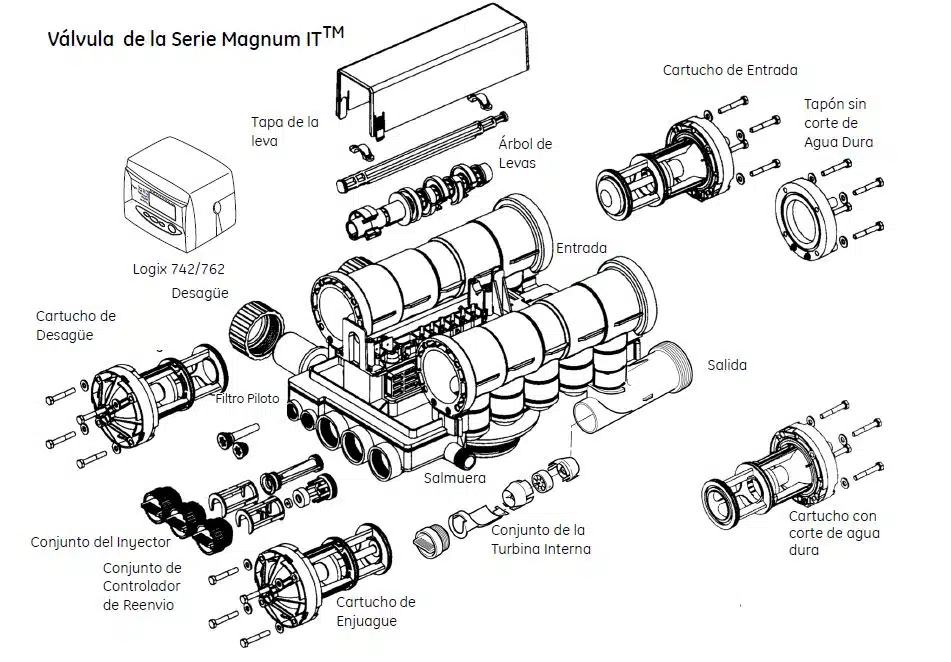

Exploded view Softeners

Q: What is the parts breakdown of a water softener?

The parts list is the set of individual parts that make up a water softener: valve, motor, gears, meters, gaskets, adapters and control elements.

Q: What is the purpose of consulting the parts diagram?

It allows you to locate the exact faulty part, avoiding changing the entire unit and ensuring compatibility with your specific model.

Q: Do all water softeners use the same parts?

No. The parts depend on the manufacturer, model, series, and year, especially for automatic and electronic valves.

Q: Can I replace just one part of the valve?

Yes. In many cases it is enough to replace the motor, drivetrain, meter, clock or gaskets, without changing the entire valve.

In this category you will find the complete breakdown of domestic water softeners , with access to valves, internal components, hydraulic spares and specific parts of the main models and manufacturers on the market.

The parts diagram allows you to identify exactly the part needed to repair or maintain a water softener without replacing the entire unit, extending its lifespan and reducing costs. It is especially useful in cases of valve malfunctions, regeneration problems, leaks, programming errors, or wear and tear from continuous use.

We have spare parts for automatic and electronic valves , meters, drive trains, adapters, gauges, clocks, valve bodies and internal elements compatible with different models of domestic and compact water softeners.

⚠️ Since many parts vary depending on the version, year, or connection diameter , it is essential to verify the exact model before purchasing. If you have any questions, our technical team can help you identify the correct replacement part.
